HORIZONTAL ELECTROPHORESIS

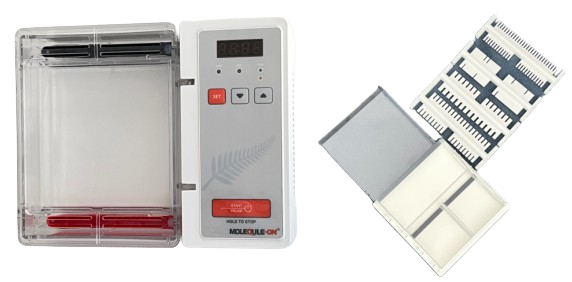

Mini Electrophoresis Tub

The Mini Tub from MOLEQULE-ON is the smallest unit in the range, designed for low to medium numbers of samples. The small gel size maximizes economy run, low buffer volume but does not compromise versatility as two tray options are available 7x7cm and 7x10cm, and combs ranging from preparative up to 16 samples. Simply by altering the gel tray or comb, this compact unit is capable of resolving up to 64 different samples.

Read more

Midi Electrophoresis Tub

The Midi Tub has been designed for routine horizontal gel electrophoresis. It has got two gel tray options of 10x7cm and 10x10cm. This unit resolves more samples per gel as compared to Mini Tub without a significant increase in buffer or gel volumes. A maximum of 100 samples per gel can be resolved making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths.

Read more

Large Electrophoresis Tub

The Large Tub from MOLEQULE-ON provides a wide range of versatility. Three different size gel trays are available 15x7cm, 15x10cm and 15x15cm. Customer can select and order one, two or all three gel length according to the experiment. This wide range of tray options allow up to 210 samples to be resolved per gel. The large size gel of 15cm run length allows restriction fragment or other close molecular weight sample bands to be easily separated and identified.

Read more

Vertical Electrophoresis

Two Gel Mini PAGE

The MOLEQULE-ON Two Gel Mini PAGE is the ideal unit for routine protein electrophoresis. The Two Gel is constructed using the latest injection molding manufacturing techniques. The unit incorporates a sealing system, which is compatible with all major types of 8×10 cm and 10×10 cm two precast gel. Gel casting and running utilize the same insert, no transfer of glass plates during gel casting is necessary. Ultra soft silicone seals and pressure bars, which surround the glass plates, guarantee leak proof gel casting. The glass plates are 2mm thick to prevent breaking and have bonded spacers for convenience.

Read more

Four Gel Mini PAGE

The Four Gel Mini PAGE system is constructed using the latest injection molding manufacturing techniques. This gives a high quality, low cost product with unsurpassed finish, durability and strength. The unit contains a sealing system, which is compatible with all major types of 8×10 cm and 10×10 cm two precast gel. The unit guarantees leak proof gel casting due to ultra soft silicone seals and pressure bars, which surround the glass plates. The glass plates are 2mm thick, which prevent breaking of gels and have bonded spacers for convenience.

Read more

Maxi Page

The MOLEQULE-ON ‘WAVE’ Maxi PAGE System is leading-edge product for large format vertical gel electrophoresis. It is designed to perform a variety of separations, including first and second-dimension SDS-PAGE, native, preparative, gradient and high-resolution nucleic acid electrophoresis, plus capillary tube gel IEF and electroblotting. By introducing innovative, new vertical screw clamp technology within the PAGE insert, only four screws are required to secure as many 20x20cm gels. This much faster set up makes WAVE distinguished when compared to competitor products whose traditional clamping configurations require as many as 24 screws to secure just two glass plates. The ergonomic wave-like design distributes pressure evenly along the height of the gel rather than in the center to eliminate plate bowing and gel compression, but still maintains a leak-proof seal during casting.

Read more

Blotting Systems

PAGE Mini Electroblotter

The MOLEQULE-ON provides a complete Mini and Maxi PAGE Electroblotting units. The Mini electroblotting unit contains 4 cassettes and fibre pads while Maxi unit includes 3 inter-locking cassettes and fibre pads. Coiled platinum electrodes generate high intensity current, which in conjunction with the advanced cooling features allow rapid electroblotting in just one hour. These stand-alone, complete units include PAGE tank and lid, electroblotting insert, cassettes and fibre pads. The system is perfect for Western, Southern and Northern Blots.

Read more

Semi Dry Electroblotter

The Semi Dry Blotter system ensures rapid transfer of DNA, RNA and proteins. The blotting time is usually 15 to 30 minutes. This unit is compatible with gel thicknesses from 0.25 up to 10mm without any need of additional equipment. Each unit is compatible with their respective MOLEQULE-ON PAGE vertical gel system. Semi Dry Blotting has the additional benefit of economic transfers due to very low buffer volumes. Normally only a few millilitres of buffer are required per transfer. This Blotter applies a screw down lid, which secures the blot sandwich and allows complete control of pressure ensuring even transfer. The two electrodes, anode and cathode are coated with platinum and stainless steel respectively, will show almost no corrosion and therefore provide many years of trouble-free use. Being translucent, it allows viewing of the blot sandwich to ensure correct positioning.

Read more

Power Supply (Electrophoresis)

The power supply by MOLEQULE-ON offers nearly twice the current and power as compare to the other similar range machines in the market. The PS-M-300 model is absolutely acceptable to use with all MOLEQULE-ON horizontal tubs systems as well as two gels and four gels PAGE mini vertical units. The Power Supply is control by microprocessor and has four sets of power terminals that allow simultaneous operation of as many electrophoresis units either at a constant voltage or current setting. It has a user-friendly interface displays 3-digit LED to aid set up.

Read more
